Spektrum Accessories Firma 5687-750Kv 4-Pole Brushless Motor
2 437,00 kr
Inkl. moms

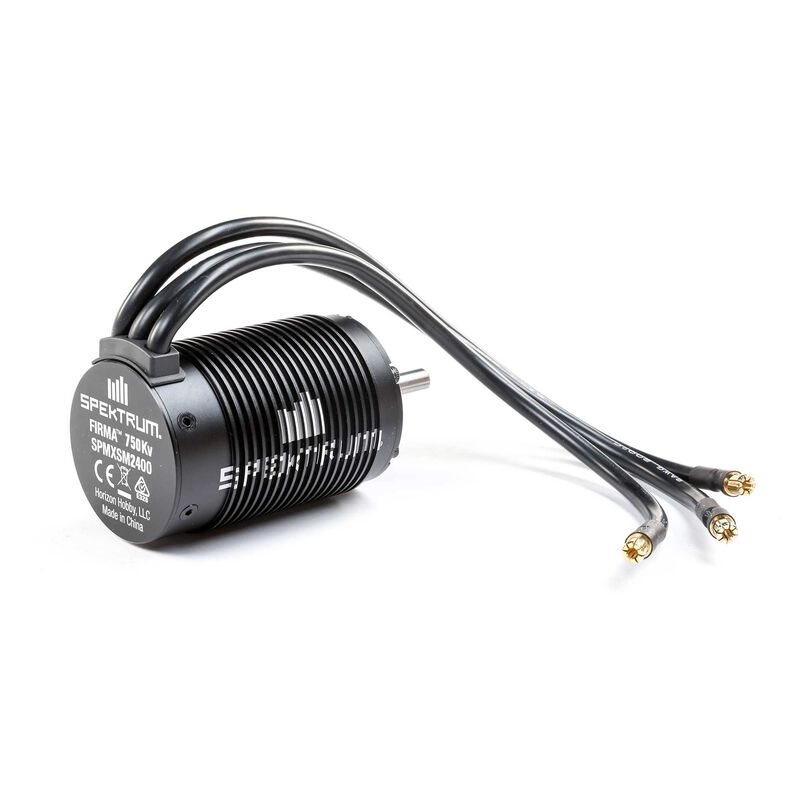

Spektrum Accessories Firma 5687-750Kv 4-Pole Brushless Motor
The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
- Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
- High efficiency design
- 4S LiPo power capable
- High-quality 4-pole sintered rotor
- 6.5mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 8mm shaft
- Sensored:
- No
- Application:
- 1/6 scale buggies, truggies or monster trucks with 3S-8S Lipo powered setup
- Connector Type:
- 6.5mm Bullet
- Efficiency:
- 87%
- Input Voltage:
- 3S - 8S LiPo
- Maximum Continuous Current:
- 80A
- Motor Design:
- Inrunner
- Motor Size:
- 5687
- Motor Type:
- Brushless
- Number of Poles:
- 4
- Outer Diameter:
- 2.2" (56 mm)
- Output:
- 3950W
- Product Length:
- 3.43" (87 mm)
- Product Weight:
- 2.08lbs (947g)
- RPM/Volt (Kv):
- 750Kv
- Shaft Diameter:
- 0.314" (8 mm)
- Connector Type:
- 6.5mm Bullet - Installed
- Max Continous Current:
- 80
- Motor Kv:
- 750
- Motor Type:
- Brushless - InRunner
- Number of Poles:
- 4
- Shaft - Diameter:
- 8
- Stator Size - Diameter:
- 56
- Stator Size - Height:
- 87
- Voltage Input Maximum:
- 25.2
- Voltage Input Minimum:
- 12
