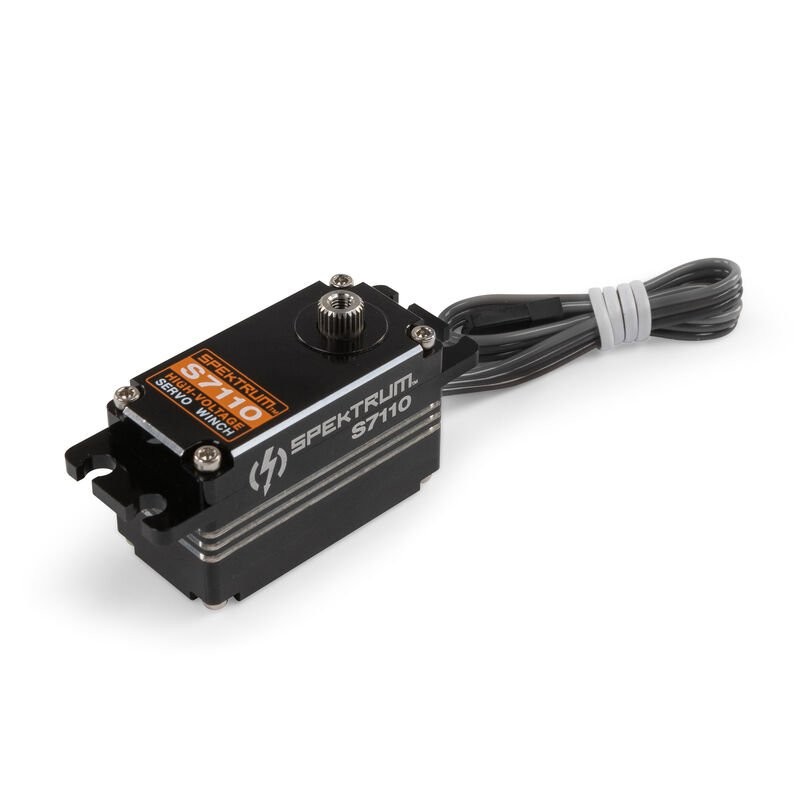

Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers
1 895,00 kr
Inkl. moms
Spektrum S7110 Low Profile Servo Winch: 1/10 Rock Crawlers
Features
- Design for 1/10th Scalers and Crawlers
- 6V to 8.4V Operating Voltage
- Durable and long-lasting brushless motor
- High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
- All Aluminum servo case for heat dissipation
- 7' feet of line with scale recovery hook included
- Built-in Integrated brushless controller for easy set up and installation
- Precise metal internal gears
- Waterproof
- 25 teeth output shaft
- Includes everything needed to start winching
Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
- Application:
- 1/10 Rock Crawlers- Winch
- Bearing:
- Ball Bearing
- Bushing Or Bearing:
- Bearing
- Connector Type:
- Universal
- Connector Wire Length:
- 7.48" (190 mm)
- Current Draw Idle:
- 2mA
- Current Draw Stall:
- 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
- Gear Type:
- Metal
- Input Voltage:
- 6.0V ~ 8.4V
- Maximum Servo Speed:
- 123RPM @ 6.0V, 155RPM @ 7.4V
- Maximum Servo Torque:
- 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
- Servo Torque Range:
- 100-199 oz-in
- Product Height:
- 0.99" (25 mm)
- Product Length:
- 1.59" (40 mm)
- Product Weight:
- 2oz (57g)
- Product Width:
- 0.8" (20 mm)
- Programmable:
- No
- Rotation Range:
- 360 Degree Continuous
- Servo Operating Voltage:
- 6.0 - 8.4V (HV)
- Servo Size Category:
- Low Profile
- Servo Type:
- Digital
- Spline Count:
- 25 - Tooth
- Wire Gauge:
- 22 AWG
