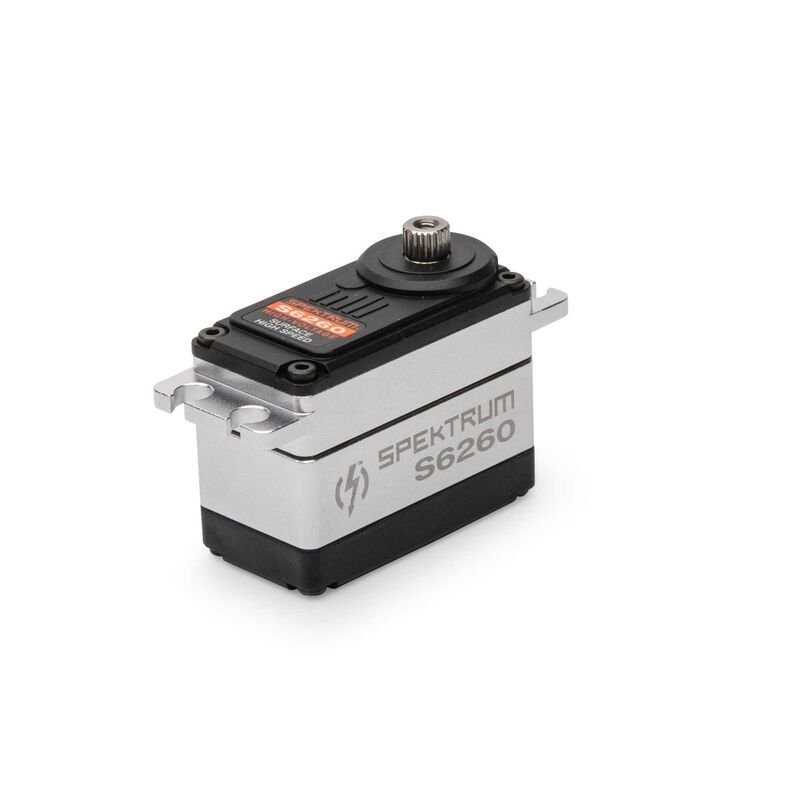

Spektrum S6260 Standard Digital HV High Speed Metal Gear Surface Servo

• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft
• Waterproof
• 1-Year Limited Warranty

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Material:

Metal / Plastic

Motor Type:

Coreless

Product Application:

Surface

Application:

Surface

Bearing:

Dual

Bushing Or Bearing:

Bearing

Connector Wire Length:

7.87 in (200mm)

Current Draw Idle:

9.8 mA @ 6.0V

Current Draw Stall:

4900mA @ 6.0V

Gear Type:

Metal

Maximum Servo Torque:

167 oz-in (12.0kg-cm) @ 6V; 210 oz-in (15.1kg-cm) @ 7.4V; 241 oz-in (17.4kg-cm) @ 8.4V

Servo Speed Range:

0.050-0.099 sec

Servo Torque Range:

200-349 oz-in

Product Height:

1.25 in (31.8mm)

Product Length:

1.61 in (41mm)

Product Weight:

2.3 oz (65.2g)

Product Width:

0.82 in (20.8mm)

Programmable:

No

Rotation Range:

120 deg

Servo Operating Voltage:

6.0 - 8.4V (HV)

Servo Size Category:

Standard

Servo Type:

Digital

Spline Count:

23 Teeth

Wire Gauge:

22 AWG

Part Type:

Electronics

Application:

Car - Steering

Bearings or Bushings:

Bearings

Digital_Analog:

Digital

Gear Material:

Metal

Max Servo Speed:

.06

Max Servo Torque:

241

Motor Type:

Brushed

Servo - Connector:

Z-Connector

Servo Size:

Standard

Servo - Wire Length:

200

Smart Compatible:

N

Spline Count:

23

Voltage Input Maximum:

8.4

Voltage Input Minimum:

6
