A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
search
  • A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo

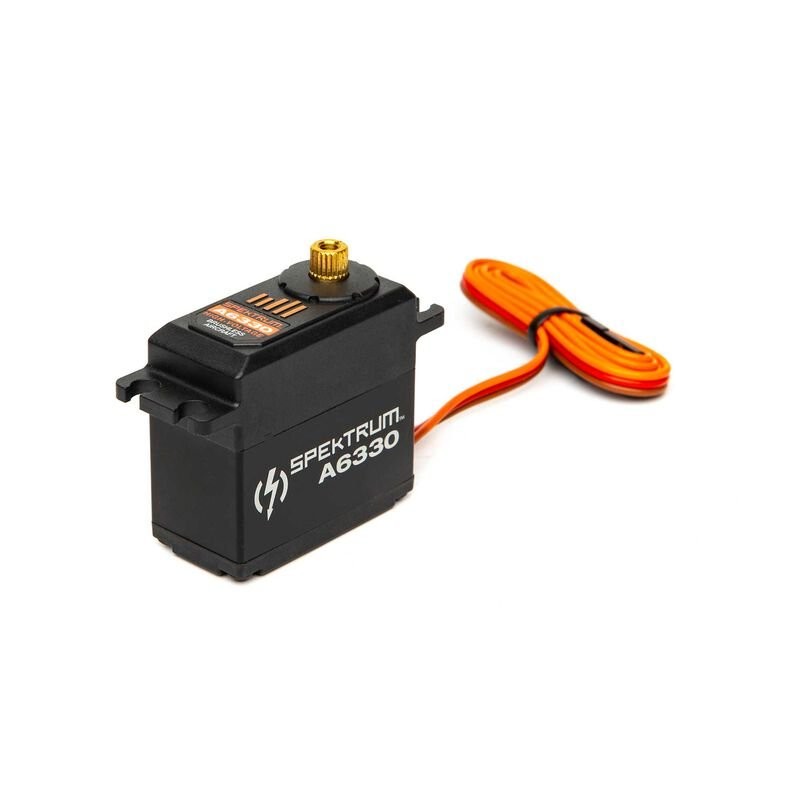

Spektrum A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo

948,00 kr
Inkl. moms
Spektrum A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
Kvantitet

SPMSA6330
  • Brushless motor provides long lasting durability and impressive power and speed
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum center servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 50-400hz

Overview

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.

Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.



Material:
Metal / Plastic
Product Application:
Air
Application:
Airplane
Bearing:
Dual Ball Bearing
Gear Type:
Metal
Input Voltage:
6 - 8.4V
Maximum Servo Torque:
126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V
Servo Speed Range:
0.100-0.149 sec
Servo Torque Range:
200-349 oz-in
Motor Type:
Brushless
Overload Protection:
Yes
Product Height:
1.56" (40 mm)
Product Length:
1.58" (40 mm)
Product Weight:
2.25oz (71g)
Product Width:
0.79" (20 mm)
Programmable:
No
Rotation Range:
120 degree
Servo Operating Voltage:
6.0 - 8.4V (HV)
Servo Size Category:
Standard
Servo Type:
Digital
Spline Count:
23 - Tooth
Wire Gauge:
22 AWG
Bushing Or Bearing:
Bearing
Connector Type:
Universal
Maximum Servo Speed:
0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Water-Resistant:
No
Application:
Airplane
Bearings or Bushings:
Bearings
Digital_Analog:
Digital
Gear Material:
Metal
Max Servo Speed:
.1
Max Servo Torque:
248
Motor Type:
Brushless - InRunner
Servo - Connector:
Z-Connector
Servo Size:
Standard
Smart Compatible:
N
Spline Count:
23
Voltage Input Maximum:
8.4
Voltage Input Minimum:
6
