1/10 R/C Audi quattro Rallye A2 (TT-02)

A Giant of the Rally World

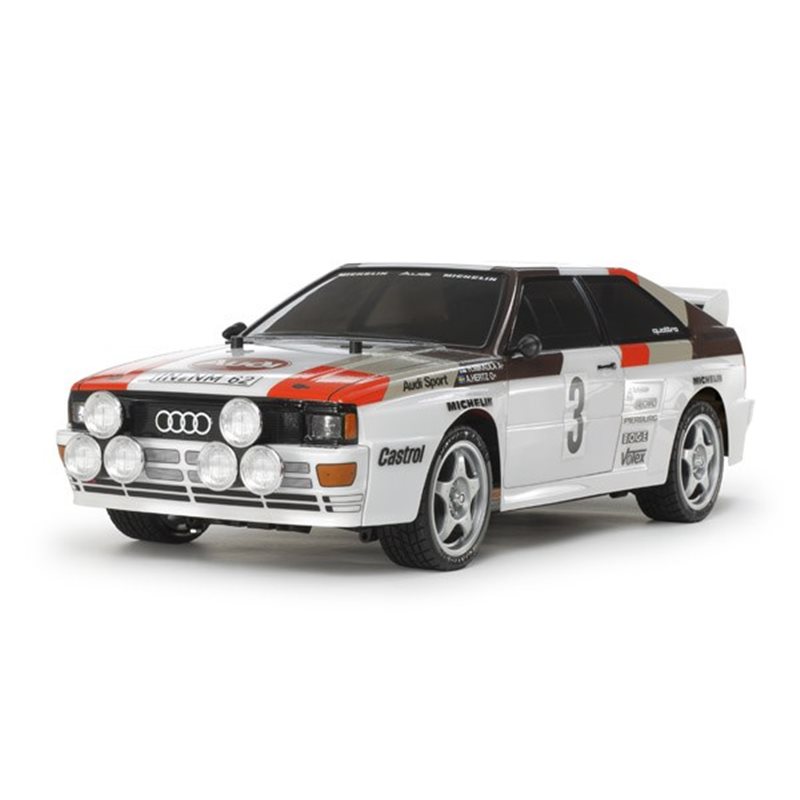

The Audi quattro is a true rallying legend that was a pioneer of 4WD rally technology. This is an R/C model assembly kit recreating the Audi quattro Rallye A2, the car which debuted in 1983. It features an accurate polycarbonate body recreating the 2-door form, with separate parts for side mirrors, rear wing and light cases. The adaptable TT-02 chassis provides the base, with 5-spoke wheels and tread patterned tires.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios.

It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. 5-spoke wheels are paired with tread-patterned tires.

Specifications

• Length: 458mm, Width: 187mm, Height: 135mm
• Wheelbase: 257mm
• Tire Width/Diameter: 26/66mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor
• Tamiya/Hobbywing Electronic Speed Controller in included.

Separately Required Items

• 2-Channel R/C Unit
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter

TT-02 Tech Spec Images

Gearbox cover can be removed simply with the loosening of screws on the frame.	Molded 4-bevel differential gears ensure that the model offers smooth drive and cornering.	Resin ball links in the steering linkage joints make for smooth, comfortable motion.
Wheel hubs are designed to look like brake discs for a realistic and stylish appearance.	4-wheel double wishbone suspension utilizes friction dampers for a controllable ride.	Motor cover includes removable cooling duct (not attached in above image).
