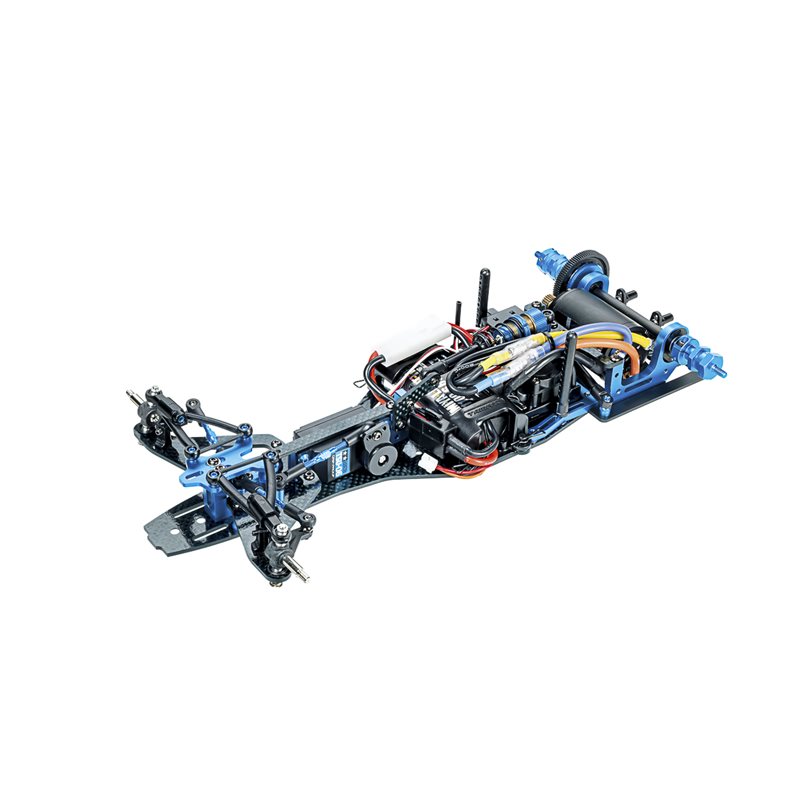

1/10 R/C TRF104 Chassis Kit

5 198,00 kr
Inkl. moms
1/10 R/C TRF104 Chassis Kit
Kvantitet
Produkten finns inte i lager men vi beställer direkt

This hi-spec 2WD formula chassis is built around a 2.5mm thick carbon fiber lower deck. Front suspension features 2.5mm thick carbon fiber lower arms and plastic upper arms, and camber angle is adjustable.

Rear suspension has ball connectors equipped on the motor mount and the roll center is based around the rear suspension. The model centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount front allows adjustment of roll speed. The pitching is controlled by an FRP suspension plate and a TRF damper.

The motor mount has parts for adjustment of ground clearance and wheelbase. Choose from two rear wing attachment methods.



1/10 R/C TRF104 Chassis Kit Tech Spec Images



The servo is positioned toward the rear and on its side to help keep a low center of gravity. An ackerman plate allows 4 different settings.

The front suspension uses plastic upper and 2.5mm carbon fiber lower arms, the latter with 2 different attachment options..

The simple yet reliable kingpin/coil spring front setup.


Use a 2mm hex wrench to alter upper arm length and front camber.

Alter upper arm mount position to switch between 6, 9 and 12 degrees of caster.

Choose between five ground clearances at intervals of 0.8mm - the maximum is 4mm. 267mm and 264.5mm wheelbases are on offer.


Ball connectors are placed front and rear of the motor mount, and the roll center is based around the rear suspension.

Balance is maintained by roll springs under the rear shaft, with a friction damper in front of the motor mount.

Pitch damping is taken care of by the FRP suspension plate and a TRF damper.



Featured Components:

  • 2.5mm carbon fiber lower deck
  • 2.0mm front stiffener stay
  • 2.5mm carbon fiber front lower arms
  • 2.25mm carbon fiber upper brace
  • 2.25mm carbon fiber damper stays
  • Aluminum upper arm mounts
  • 2.0mm carbon fiber roll spring mount
  • 2.0mm carbon fiber bulkplate
  • Aluminum front bulkhead
  • Aluminum center bulkhead
  • Aluminum steering arms
  • Aluminum ackerman plate
  • Aluminum suspension brackets
  • Aluminum motor mount
  • Aluminum rear stiffeners
  • Carbon fiber rear shaft
  • FRP suspension plate
  • TRF damper (HL cylinder, titanium coated shaft)
  • Left/right roll dampers
  • Aluminum motor plate
  • Aluminum servo stay
  • Aluminum diff housing
  • Aluminum clamp type wheel hubs
  • Aluminum turnbuckle shafts
  • Hi-torque servo saver
  • 04 module pinion gear (24T)
  • Rubber sealed ball bearings



Specifications:

  • Length: 324mm (without wings)
  • Width: 181mm
  • Wheelbase: 267mm/264.5mm
  • Carbon fiber double deck frame
  • Rear direct drive 2WD
  • Ball differential
  • 2-piece steering tie-rod
  • Front kingpin coil sprung independent suspension (3 caster settings and adjustable camber)
  • Rear pivot ball suspension
  • TRF damper & 2x roll dampers
  • Gear ratio = 4.00:1 (with kit 96T spur and 24T pinion)
  • Motor sold separately


Separately Required Items:

  • Body
  • Front/rear wings
  • Wheels
  • Tires
  • Brushless motor
  • 2-channel R/C system w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger



Satoshi Maezumi, also known as "Paisen RC", is one of Tamiya Japan’s most experienced and passionate RC drivers. In this video, he shares expert setup tips, driving techniques, and product insights.

Please note: the video is in Japanese only, but the visuals and demonstrations are easy to follow for all RC enthusiasts.

TA42389
