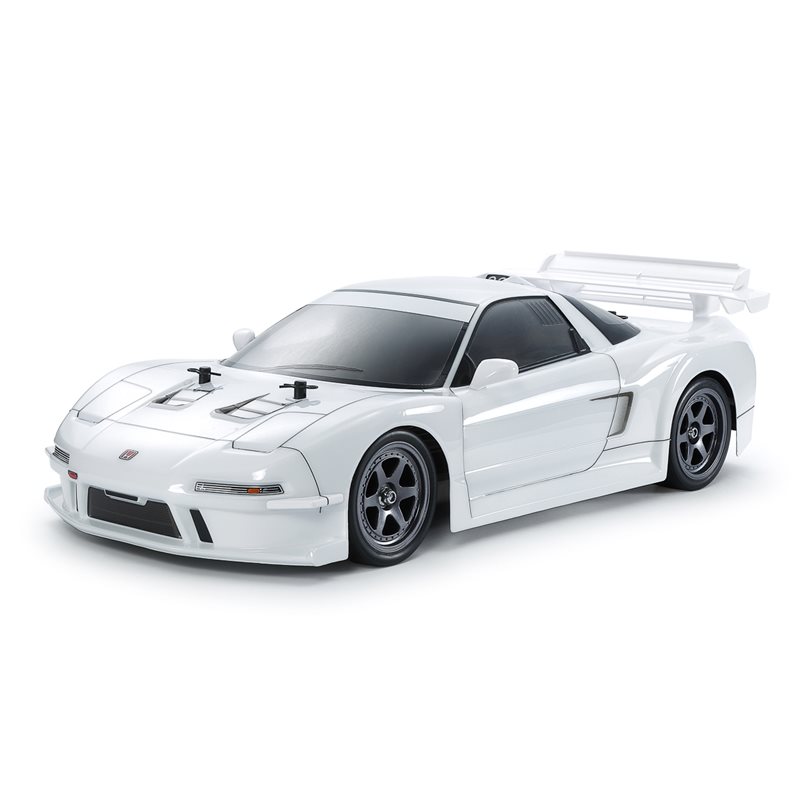

Tamiya welcomes another release on our popular TT-02 chassis; this time, the 1998 Honda NSX Racing!

The NSX - a midship engine sports car released in 1990 – achieved success in races all over the world and also took part in Japanese GT car races from 1996. The 1998 version employed a 3.5-liter V6 engine, and featured improved aerodynamics, low center of gravity, improved brake system and easier maintenance. Four cars were raced that year and achieved five victories.

This assembly kit creates an R/C model of that car, with an aerodynamically efficient polycarbonate body and stickers to decorate it, and is based upon the versatile and popular TT-02 chassis.

About the Model
• This is a 1/10 scale R/C model assembly kit. Length: 435mm, width: 194mm, height: 121mm. Wheelbase: 257mm.
• The lightweight, durable 1.0mm thick polycarbonate body authentically captures the form of the 1998 Honda NSX Racing in style.
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• Gun metal 6-spoke wheels are paired with racing slick tires.
• Comes with stickers and masking stickers for use in the paint job.

1998 Honda NSX Racing Tech Spec Images

Front bumper canards are separately molded ABS plastic pieces.	Side mirrors use separate ABS plastic parts with stickers for the mirror surfaces.	The 2-layer rear wing is recreated in style by a single part.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes.

It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

TT-02 Tech Spec Images

Gearbox cover can be removed simply with the loosening of screws on the frame.	Molded 4-bevel differential gears ensure that the model offers smooth drive and cornering.	Resin ball links in the steering linkage joints make for smooth, comfortable motion.
Wheel hubs are designed to look like brake discs for a realistic and stylish appearance.	4-wheel double wishbone suspension utilizes friction dampers for a controllable ride.	Motor cover includes removable cooling duct (not attached in above image).

Specifications

• Length: 435mm, width: 194mm, height: 121mm
• Wheelbase: 257mm
• Tire width/diameter: 27/67mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Tamiya/Hobbywing ESC included.
