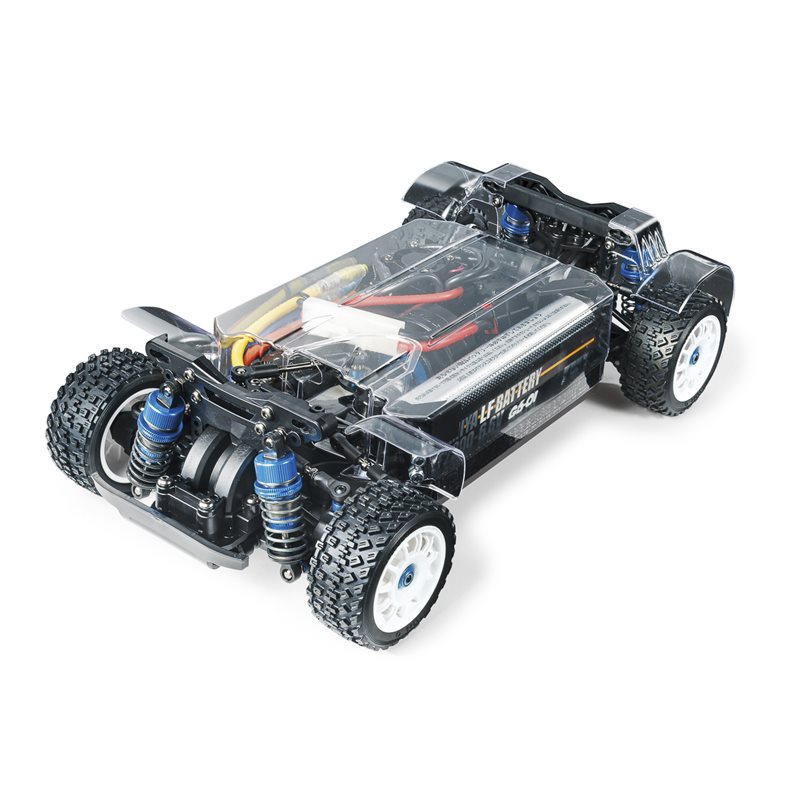

1/10 R/C XM-01 PRO Chassis Kit

This shaft-driven 4WD chassis kit (M-chassis size) is another addition to the R/C rally line-up, and has features such as three types of wheelbase, new suspension components and a polycarbonate chassis cover. Add this chassis kit to your M-rally collection!

This compact shaft-driven 4WD chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via front and rear propeller shafts. A longitudinal upright battery pack is positioned in the left side, contributing to optimum balance. Changing the rear section allows a choice from three wheelbases. The 4-wheel independent double wishbone suspension has aluminum-cylinder oil dampers. Front caster angle is 5 degrees, and hub carriers and uprights allow two types of ground clearance, while the front bumper skid angle reduces surface contact.

Featured Components

• Front & rear oil-filled gear differentials (two 39T and one 40T included)
• Front & rear universal drive shafts
• Aluminum oil dampers (touring car size)
• Hub carriers & uprights allow ground clearance changes
• Turnbuckle upper arms
• Full ball bearings
• Hi-torque servo saver (black)
• Polycarbonate chassis cover

XM-01 PRO Chassis Kit Tech Spec Images

The motor is mounted midships and power goes via propeller shafts to front and rear.	Heavier equipment is placed in the middle of the chassis, and the battery has an upright position, giving this rally chassis a compact setup.	39T oil filled gear differentials are standard front and rear, and a 40T gear is also included. Use the 40T to adjust the drive balance.
Change the rear construction to switch between the three wheelbases.	The three wheelbases are compatible with existing M-chassis bodies.	New hub carriers and rear uprights let you choose ground clearance.

About the Model
• This is a 1/10 scale R/C chassis assembly kit.
• Equipped with front mid-ship, longitudinal motor position.
• Changing rear section allows a choice from three wheelbases (short: 210mm, middle:225mm, long: 239mm).
• Bathtub frame chassis and polycarbonate chassis cover plus front inside polycarbonate cover and rear section are newly-molded parts. Mud guards helps prevent dirt and dust from getting inside.
• New front C-hubs and rear uprights, plus lower suspension arms allow two types (about 8mm or 13mm) of ground clearances.
• Caster angle can be set at 5 degrees by suspension mounts.
*For comparison, the XV-02 PRO chassis kit uses caster blocks which feature 6-degree caster angle. (XV-01 chassis: 10-degree caster angle)
• The drivetrain employs oil-filled gear differential for front and rear.
• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
• It features a longitudinal upright battery pack position in the center-left for optimum balance.
• Front bumper with skid angle contributes to reduce surface contact.
• Aluminum dampers are employed at front and rear.
• M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
• Front and rear universal drive shafts come as standard.
• Compatible with center diff setup and separately sold slipper clutch.
• Some Hop-Up Option parts for the XV-02 PRO chassis kit can be used.
• Low-profile servo is recommended. (Standard servo can be used, but it comes into contact with the front inside polycarbonate cover.)
• Please note that this chassis requires separately sold body, battery pack, motor and R/C equipment.

<<Examples of compatible Hop-Up Option Parts>>
22046: XV-02/TT-02 Ball Differential Set (39T)
22047: XV-02/TT-02 Front Direct Coupling Set (39T)
22048: XV-02 Slipper Clutch Set
22049: XV-02/TT-02 Oil Gear Differential Unit
22050: 06 Module Spur Gear (70T) for XV-02 Gear Differential (Use with Item 22049 XV-02/TT-02 Oil Gear Differential Unit.)
22053: XV-02 Aluminum Spur Gear Holder
22055: XV-02 Aluminum Adjustable Suspension Mount (XH)
22056: XV-02 Aluminum Damper Stay Mount
22064: TT-02 Type-SRX Front Direct Cup Joints (Use with Item 22046 XV-02/TT-02 Ball Differential Set (39T) or Item 22047 XV-02/TT-02 Front Direct
Coupling Set (39T).)
22072: XV-02 Aluminum Steering Arms (L/R)
54802: TB-05 Aluminum Steering Bridge
54884: Aluminum Adjustable Separate Suspension Mounts (A)
