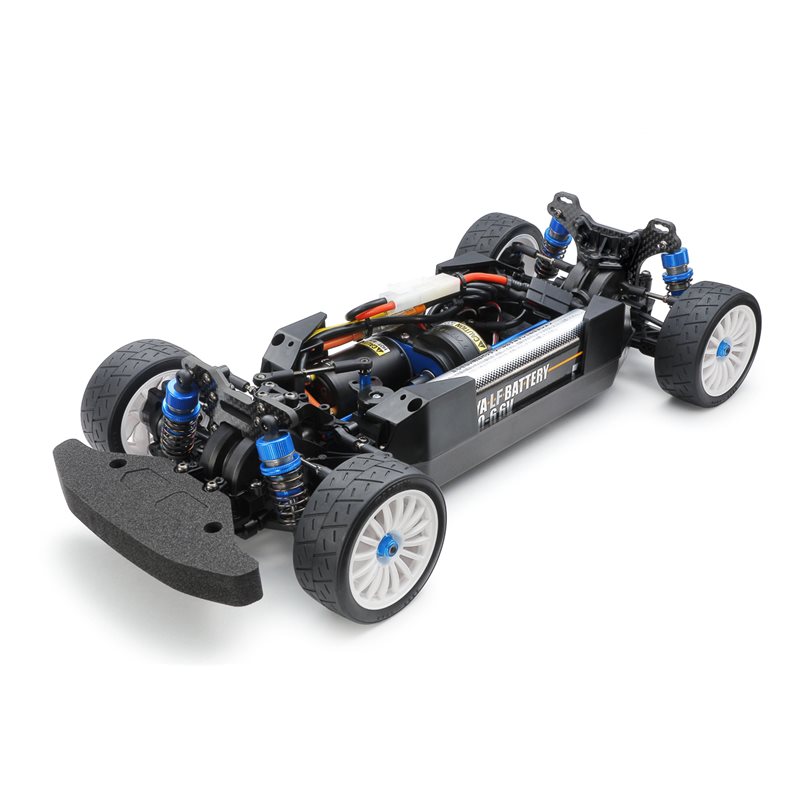

1/10 R/C XV-02RS PRO Chassis Kit

Tamiya is delighted to announce this shaft-driven 4WD touring chassis kit - based upon Item 58707 XV-02 PRO Chassis Kit – in the XV chassis series; this time the kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower deck.

On-Road Oriented Rally Chassis!
This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.

Featured Components:

Drivetrain: Full ball bearings, front and rear aluminum propeller shafts, front and rear oil-filled gear differentials (2x 39T and 1x 40T gears included), front and rear universal drive shafts

Suspension: Front and rear aluminum oil dampers (blue caps, touring car size), 6-degree caster blocks, turnbuckle upper arms, 3.5mm thickness carbon damper stays

Chassis: Carbon fiber-reinforced lower deck, aluminum servo mount, angled front bumper, hi-torque servo save.

The chassis employs an aluminum servo mount and hi-torque servo saver. Turnbuckle rods allow swift steering adjustment.	The double wishbone front suspension features 6-degree caster blocks.	High performance aluminum cylinder dampers are touring car size, with 30.5mm piston rods. The damper stay is 3.5mm thickness carbon fiber. .
Identical length propeller shafts transmit power from the central spur gear to the front and rear.	Sealed front and rear gearboxes house oil filled gear differentials.	Upper arm attachment in the double wishbone rear suspension can be altered by the use of spacers from separately sold Item 53539.
Rear aluminum cylinder oil dampers are also touring car size.	The battery pack sits on its side, allowing a narrower chassis. Access it by opening the levers front and rear, as shown here.	Take a closer look at the carbon fiber-reinforced plastic lower deck.

About the Model

• This is a 1/10 scale R/C chassis assembly kit.
• Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower deck.
• 18-spoke wheels are paired with racing semi-slick tires.
• Equipped with front midship motor plus identical length front and rear long propeller shafts.
• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.
• A longitudinal battery pack is positioned in the center-left for optimum balance.
• The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact.
• Caster blocks feature an angle of six degrees.
• Includes front and rear universal drive shafts, and an aluminum servo mount.
• Please note that a polycarbonate chassis cover is not included this time.

Please note, this version is without Radio and ESC, we recommend the RC set and ESC from Mstyle.
