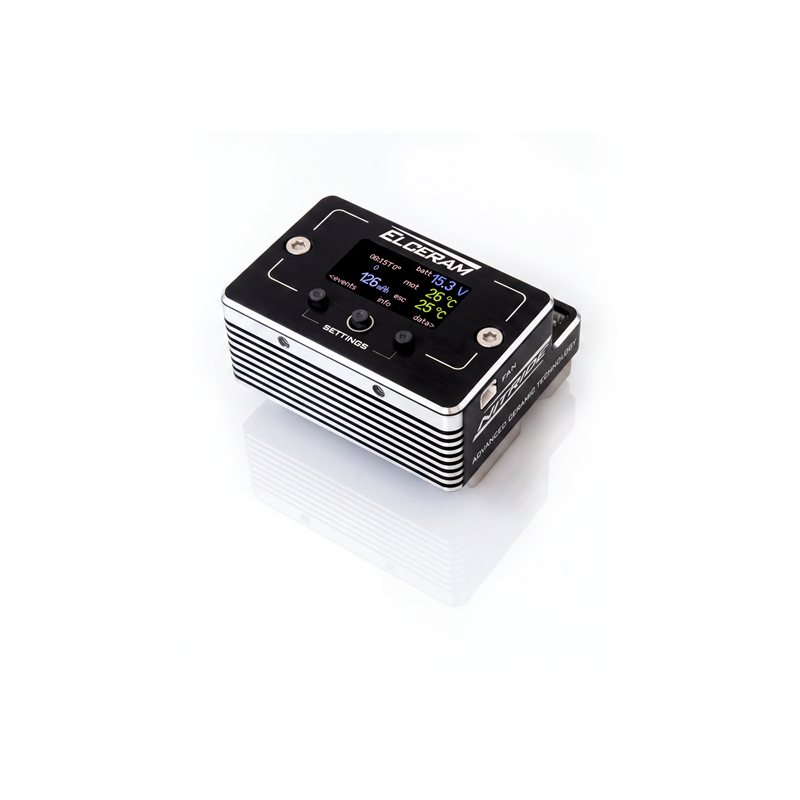

NITRIDE 1/8

Innovative ESC for 1/8 Onroad and Offroad cars.

TOP racing solution especially for 1/8 RC cars with powerful motors up to 2800 kV.

Advanced Cooling Technology based on ceramic and Thick Film Technology

Advanced cooling technology based on Aluminium Nitride Ceramic Cooler, developed especially for NITRIDE, provides the ESC the excellent thermal conductivity and long-term resistance to high temperatures and loads.

Alminium Nitride Ceramic brings even 15 % better efficiency compared to Aluminium Oxide.

Power MOSFET´s transistors are attached on very thick silver layer with low resistance and high current capability. The silver layer is fired directly on Aluminium Nitride Cooler using temperature above 850 °C for excellent long-term reliability and thermal shock stability.  The power stage - the heaviest component - is all way down.

During production, we use very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies inspired by advanced power systems designed and manufactured here in ELCERAM.

Quick and easy installation

Installation of NITRIDE 1/8 is quick and easy - you can stick it directly to the chassis of your car using a double-sided tape included in the package. Recommended tape type is 3M GPH-110.

If better cooling effect desired, you can stick NITRIDE 1/8 on any thermal conductive plate (for example aluminium) in the car.

NITRIDE 1/8 can be also installed using two screws M2.5.

The screws M2.5 must always be fully screwed in and tightened enough to ensure heat transfer between ceramic cooler and aluminium ESC housing, even if using the double-sided tape.

Fan Connector

For highly demanding conditions, where better cooling effect is desired, we recommend to use an external fan.

Basic ELCERAM fan 2510 is included in the package and also available as option part ELC025.

NITRIDE 1/8 is already equipped with connector for intelligent fan and pre-drilled mounting holes for quick and easy fan installation.

For motors more than 2300 kV we recommend to use stronger fan, for example with a diameter of 30 or 40 mm.

Always use 2x external capacitors for motors above 2300 kV. Two pairs of external capacitors are included in the package.

Features:

• ESC for sensored BLDC motors max. 2800 kV.
• Developed especially for 1/8th offroad RC cars.
• Reverse polarity protection.
• Intelligent algorithms for ESC protection.
• Fine throttle and brake adjustment for excellent feeling.
• TFT LCD color display with resolution 160 x 80 pixels, matte finish.
• Size: 50 (L) x 43 (W) x 28 (H) mm.
• Weight: 112 g without wires.
• Wires AWG10 - 200 mm.
• Power supply: 2S - 4S LiPo.
• ESC current cont. / pulsed: 220 A / 1500 A.
• BEC: 6 - 8,4 V adjustable, current cont. / pulsed: 6 A / 15 A.
• Extreme low internal resistance based on silver conductive layer.
• Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
• Enhanced water and dust resistance.
• Changeable cover.
• Connector for Intelligent fan and fan holder.
• ELCERAM fan included in the package.

Functions:

• Revolutionary easy Rx calibration.
• Realtime monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and more
• Revolutionary battery current and discharge monitoring.
• Revolutionary brake softening function.
• Revolutionary motor analyzer function.
• Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and more.
• Post-race data evaluation.
• Easy programming: throttle, brake, boost and turbo timing, hall angle, BEC and many other functions.
• Continuous BEC voltage monitoring.
• Continuous motor speed monitoring.
• RPM limiter supported.
• Race data logging, temperature and other curves, histograms and more.
• Adjustable maintenance reminder for easy check.
• No programming interface needed.
