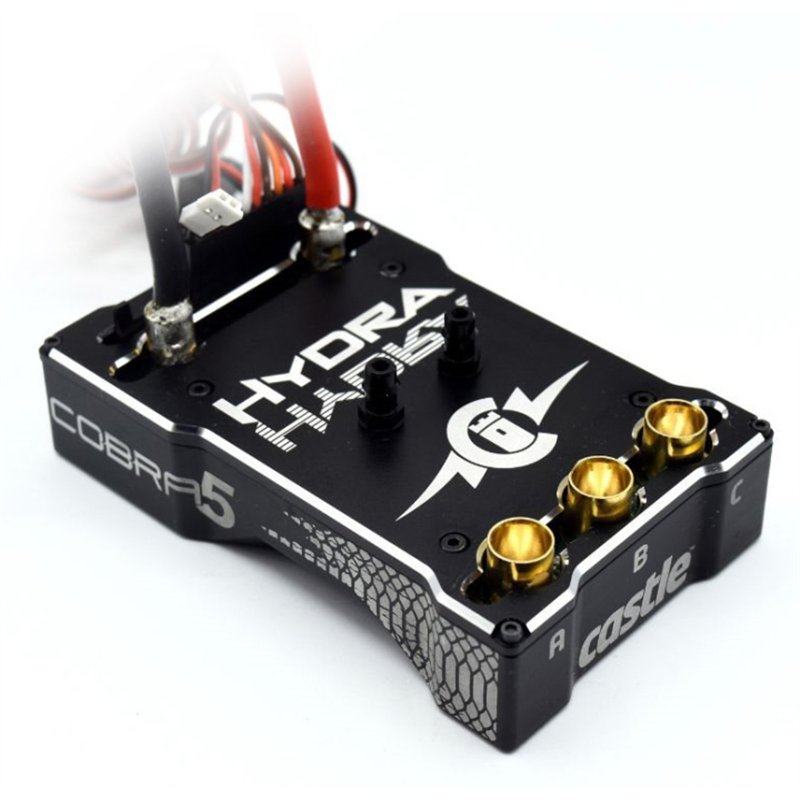

Hydra Cobra 5 8S 33.6V ESC 20A Peak BEC

Castle CC010-0182-00 - Hydra Cobra 5 HV 8S 33.6V ESC with 20A Peak BEC

The Hydra Cobra 5 is a high-performance marine electronic speed controller (ESC) designed for RC boats. Supporting up to 8S LiPo (33.6 V), it provides advanced cooling, high current capability, and precise control for hulls up to around 50 inches.

Key Features

• Input voltage: 3S–8S LiPo (up to 33.6 V)

• 20A peak adjustable BEC (5.0–8.5 V in 0.1 V steps)

• Continuous current up to 180A, burst up to 350A

• CRYO-DRIVE™ technology for efficiency and reduced heat

• Water-cooled aluminum heatsink with dual fittings

• Rugged, waterproof design with CNC case and epoxy potting

• Advanced data logging with extended duration and accelerometer

• On-the-fly tuning via auxiliary wire

• SmartSense™ mode for sensored brushless motors

• Firmware updates and full tuning via Castle Link (adapter included)

Technical Specifications

• Dimensions: 101.2 × 63.3 × 34 mm

• Weight: 365 g (with wiring)

• Motor connectors: 8.0 mm female bullets

• Cooling interface: dual water fittings, 10-32 UNF threads

• Mounting: four M3 holes on bottom

What’s Included

• Hydra Cobra 5 ESC

• Castle Link V4 USB adapter

• Sensor wire

• Decals

• Quick Start Guide
