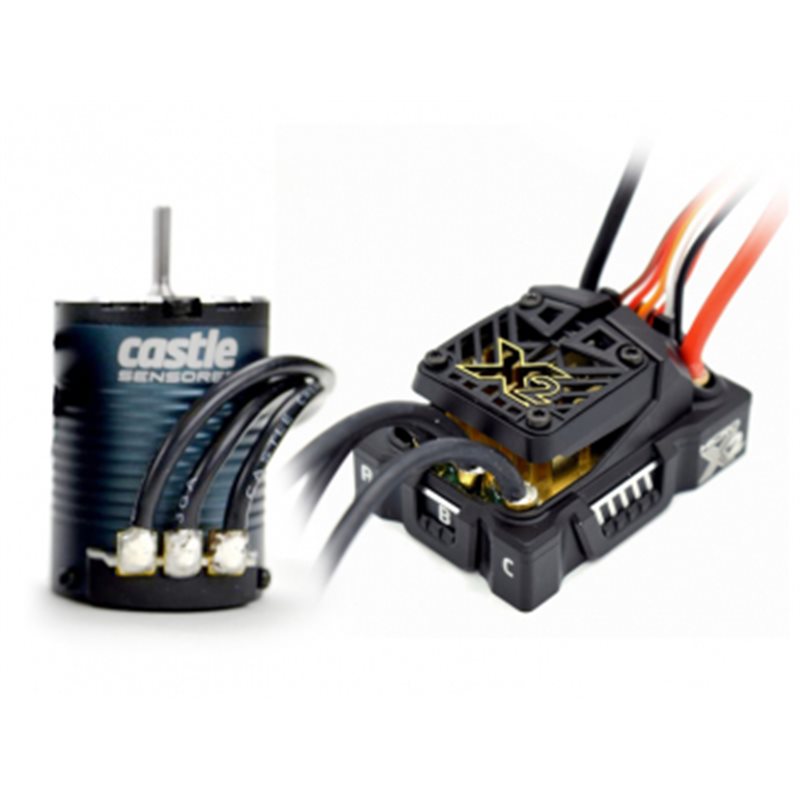

Mamba Micro X2 Combo med 1406-2280KV Motor

The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC,waterproof* and has SENSORED MOTOR SUPPORT.

This ESC and Motor Combo is ideal for the weight conscious builder or where space is limited, it is perfect for 1/10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 3.6kg. Can also be used in more aggressive setups in lighter 1/10 scale touring cars, stadium trucks or buggies weighing up to 2.2kg.

If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Like its predecessor it includes improved features for rock crawling, including active drag brake and drag brake ramp.

Note: Use of an external BEC is required if running a high power or digital servo.

ESC FEATURES:

• Input Voltage range 2S-4S
• Adjustable BEC: 5.5V or 7.5V (2A Peak), default 5.5V
• Waterproof design
• Sensored Motor capable
• Convenient transmitter programming for six common adjustable settings.
• Additional settings and software updates available via Windows®-based Castle Link software and USB adapter or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
• Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
• Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
• Audible Alerts that will notify you of possible issues with calibrations and error conditions.
• Designed and manufactured in Olathe, Kansas, USA

Mamba Micro X2 w/1406-2280Kv Combo Includes:

• Mamba Micro X2 ESC with 4 mm Connectors
• 1406-2280Kv Sensored Motor
• Sensor Harness
• Driver's Ed and Quick Start Guide
• Castle Decals

Application Guidelines:

• Ideal for 1/10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 3.6kg. Can also be used in more aggressive setups in lighter 1/10 scale touring cars, stadium trucks or buggies weighing up to 2.2kg.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
