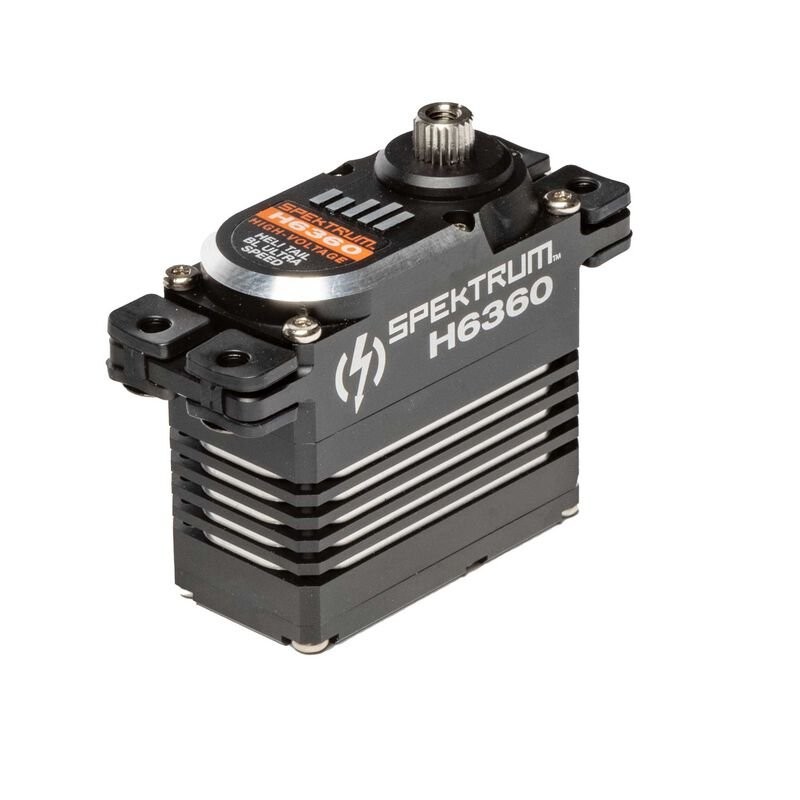

Spektrum H6360 Standard Digital HV Brushless Mid Torque Ultra Speed Heli Tail Servo

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, blindingly fast performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.

The Spektrum H6360 tail servo uses this solid foundation, to achieve blinding transit speeds of .04 sec with an outstanding balance of durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding tail-rotor control choice for of 550- to 700-class electric and nitro helis.

Material:

Metal

Product Application:

Heli Tail

Application:

Heli Tail

Bearing:

Dual

Bushing Or Bearing:

Bearing

Connector Type:

Universal

Connector Wire Length:

6 in and 12 in

Deadband:

2 - 3 ?s

Gear Type:

Metal

Maximum Servo Torque:

104.9 oz-in (7.56 kg-cm) @ 8.4V

Servo Speed Range:

0.050-0.099 sec

Servo Torque Range:

100-199 oz-in

Motor Type:

Brushless

Product Height:

1.49 in (37.8mm)

Product Length:

1.57 in (40mm)

Product Weight:

2.6 oz (73.6 g)

Product Width:

0.79 in (20mm)

Programmable:

No

Servo Operating Voltage:

6.0 - 8.4V (HV)

Servo Size Category:

Standard

Servo Type:

Digital

Wire Gauge:

22 AWG

Application:

Heli - Tail

Bearings or Bushings:

Bearings

Center Pulse/Frequency:

760µs/560Hz

Digital_Analog:

Digital

Gear Material:

Metal

Max Servo Speed:

.04

Max Servo Torque:

105

Motor Type:

Brushless - InRunner

Servo - Connector:

Z-Connector

Servo Size:

Standard

Smart Compatible:

N

Spline Count:

23

Voltage Input Maximum:

8.4

Voltage Input Minimum:

6
