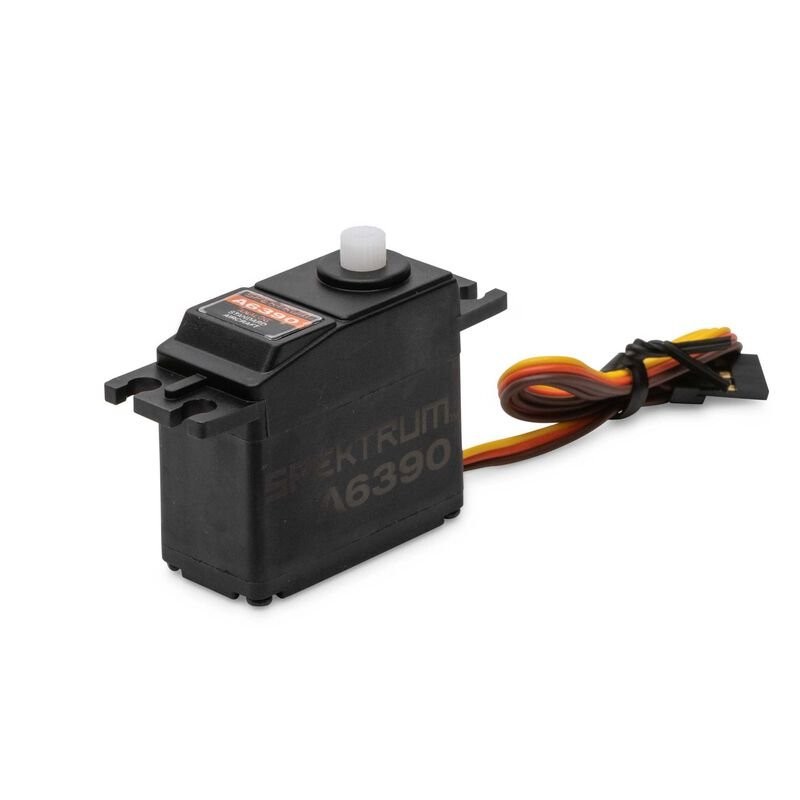

Spektrum A6390 Standard Analog Mid Torque Mid Speed Aircraft Servo

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project

Material:

Plastic

Motor Type:

Coreless

Product Application:

Air

Application:

Air

Bearing:

Single

Bushing Or Bearing:

Bearing

Connector Type:

Universal

Connector Wire Length:

12" (305 mm)

Gear Type:

Nylon

Maximum Servo Torque:

48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V

Servo Speed Range:

0.100-0.149 sec

Servo Torque Range:

40-99 oz-in

Product Height:

1.36" (35 mm)

Product Length:

1.52" (39 mm)

Product Weight:

1.3oz (37g)

Product Width:

0.74" (19 mm)

Programmable:

No

Rotation Range:

120 deg

Servo Operating Voltage:

4.8 - 6.0V

Servo Size Category:

Standard

Servo Type:

Analog

Wire Gauge:

22 AWG

Deadband:

3µs

Input Voltage:

4.8V to 6.0V

Maximum Servo Speed:

0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V

Spline Count:

23 - Tooth

Water-Resistant:

No

Application:

Airplane

Bearings or Bushings:

Bearings

Digital_Analog:

Analog

Gear Material:

Nylon

Max Servo Speed:

.14

Max Servo Torque:

67

Motor Type:

Brushed

Servo - Connector:

Z-Connector

Servo Size:

Standard

Servo - Wire Length:

305

Smart Compatible:

N

Spline Count:

23

Voltage Input Maximum:

6

Voltage Input Minimum:

4.8
