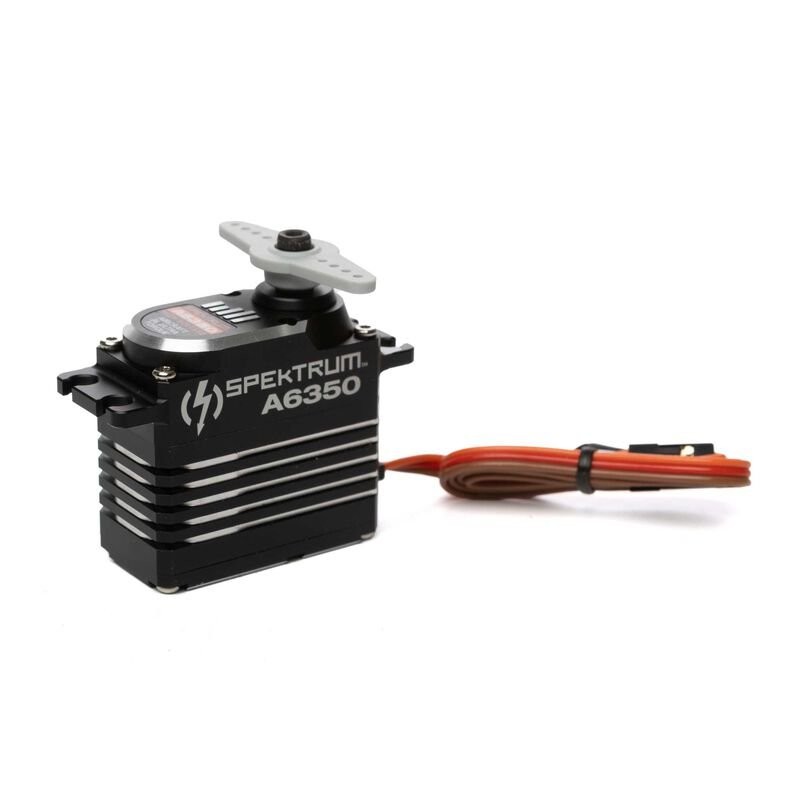

Spektrum A6350 Ultra Torque / High Speed Brushless HV Servo

kr2,737.00
Tax included
Spektrum A6350 Ultra Torque / High Speed Brushless HV Servo
Quantity

SPMSA6350

Features

  • High Voltage (HV) capable (6.0-8.4v input range)
  • Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
  • Durable and long-lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Operating Frequency: 200hz to 333hz

A6350 Ultra Torque High Speed Brushless MG HV Servo

The Spektrum™ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum". Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that's ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.



Application:
Airplane
Product Application:
Air
Bearing:
Dual Ball Bearing
Bushing Or Bearing:
Bearing
Gear Type:
Metal
Input Voltage:
6.0V to 8.4V
Material:
Metal
Maximum Servo Torque:
576 oz-in (41.5 kg-cm) @ 6.0V; 725 oz-in (52.2 kg-cm) @ 7.4V; 852 oz-in (61.4 kg-cm) @ 8.4V
Servo Speed Range:
0.050-0.099 sec
Servo Torque Range:
500+ oz-in
Motor Type:
Brushless
Overload Protection:
Yes
Product Height:
1.61" (41 mm)
Product Length:
1.61" (41 mm)
Product Weight:
3 oz (85g)
Product Width:
0.83" (21 mm)
Search Keywords:
spm22servos
Servo Operating Voltage:
4.8 - 8.4V (HV)
Servo Size Category:
Standard
Servo Type:
Digital
Spline Count:
23 - Tooth
Connector Type:
Universal
Maximum Servo Speed:
0.145 sec/60 deg @ 6.0V; 0.115 sec/60 deg @7.4V; 0.095 sec/60 deg @ 8.4V
Water-Resistant:
No
Application:
Airplane
Bearings or Bushings:
Bearings
Digital_Analog:
Digital
Gear Material:
Metal
Max Servo Speed:
.09
Max Servo Torque:
852
Motor Type:
Brushless - InRunner
Servo - Connector:
Z-Connector
Servo Size:
Standard
Smart Compatible:
N
Spline Count:
23
Voltage Input Maximum:
8.4
Voltage Input Minimum:
6
