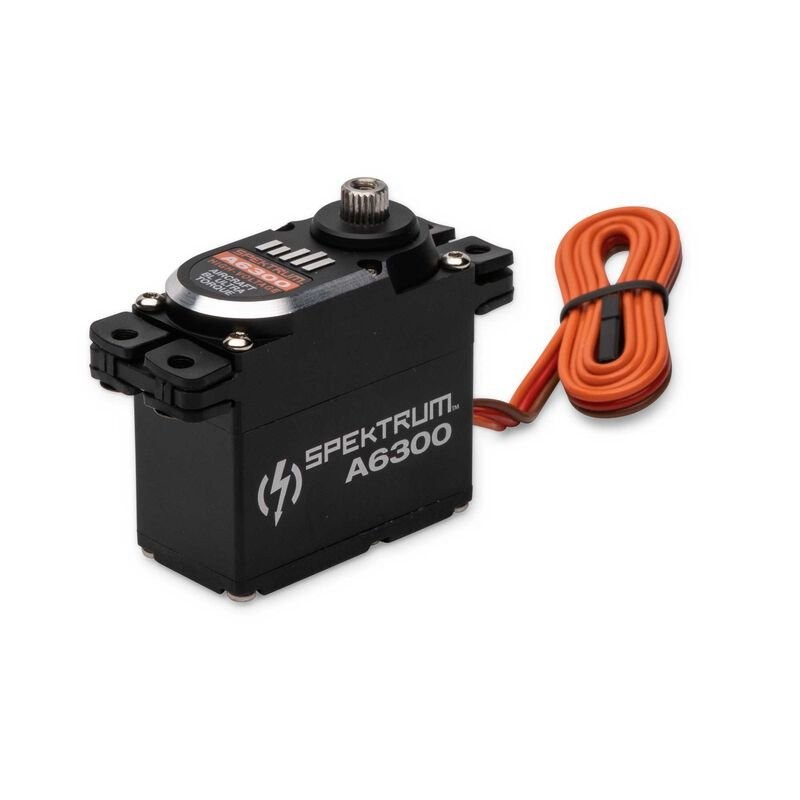

Spektrum A6300 Standard Digital HV Ultra Torque Brushless Metal Gear Aircraft Servo

• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 200hz to 333hz

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.

The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobatics, jets or any application where massive amounts of torques and holding power are a must.

Material:

Metal

Product Application:

Air

Application:

Airplane

Bearing:

Dual Ball Bearing

Bushing Or Bearing:

Bearing

Connector Type:

Universal

Connector Wire Length:

18" (457 mm)

Deadband:

2µs, 3µs

Gear Type:

Metal

Input Voltage:

6.0-8.4V

Maximum Servo Torque:

378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V

Servo Speed Range:

0.100-0.149 sec

Servo Torque Range:

500+ oz-in

Motor Type:

Brushless

Product Height:

1.49" (38 mm)

Product Length:

1.57" (40 mm)

Product Weight:

2.81oz (79.80g)

Product Width:

0.79" (20 mm)

Programmable:

No

Servo Operating Voltage:

6.0 - 8.4V (HV)

Servo Size Category:

Standard

Servo Type:

Digital

Wire Gauge:

22 AWG

Spline Count:

23 - Tooth

Maximum Servo Speed:

0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V

Water-Resistant:

No

Application:

Airplane

Bearings or Bushings:

Bearings

Digital_Analog:

Digital

Gear Material:

Metal

Max Servo Speed:

.01

Max Servo Torque:

530

Motor Type:

Brushless - InRunner

Servo - Connector:

Z-Connector

Servo Size:

Standard

Servo - Wire Length:

457

Smart Compatible:

N

Spline Count:

23

Voltage Input Maximum:

8.4

Voltage Input Minimum:

6
