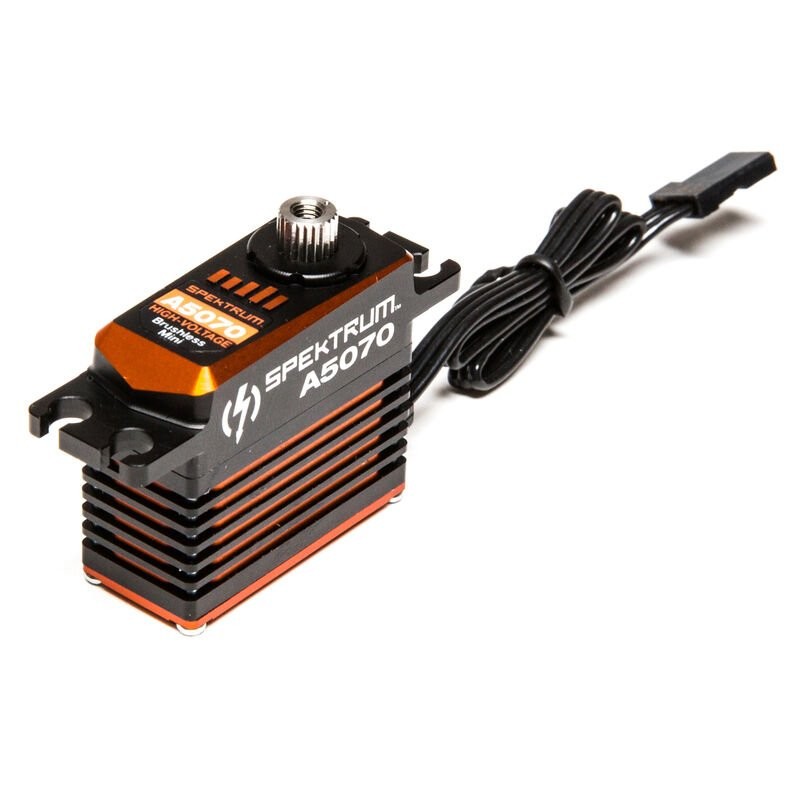

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo
kr1,790.00
Tax included
Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo
- Material:
- Metal
- Motor Type:
- Brushless
- Product Application:
- Air
- Application:
- Airplane or Heli
- Bearing:
- Dual Ball Bearing
- Bushing Or Bearing:
- Bearing
- Connector Type:
- Universal
- Connector Wire Length:
- 11.8" (300 mm)
- Deadband:
- 2µs
- Gear Type:
- Metal
- Maximum Servo Torque:
- 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
- Servo Speed Range:
- 0.050-0.099 sec
- Servo Torque Range:
- 100-199 oz-in
- Overload Protection:
- Yes
- Product Height:
- 1.16" (29 mm)
- Product Length:
- 1.32" (34 mm)
- Product Weight:
- 1.4 oz (40g)
- Product Width:
- 0.59" (15 mm)
- Programmable:
- No
- Rotation Range:
- 120 Degrees
- Servo Operating Voltage:
- 6.0 - 8.4V (HV)
- Servo Size Category:
- Mini
- Servo Type:
- Digital
- Wire Gauge:
- 22 AWG
- Maximum Servo Speed:
- 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
- Spline Count:
- 23 - Tooth
- Water-Resistant:
- No
- Application:
- Airplane
- Bearings or Bushings:
- Bearings
- Gear Material:
- Metal
- Motor Type:
- Brushless - InRunner
- Servo - Connector:
- Z-Connector
- Servo Size:
- Mini
- Servo - Wire Length:
- 300
- Smart Compatible:
- N
- Spline Count:
- 23
