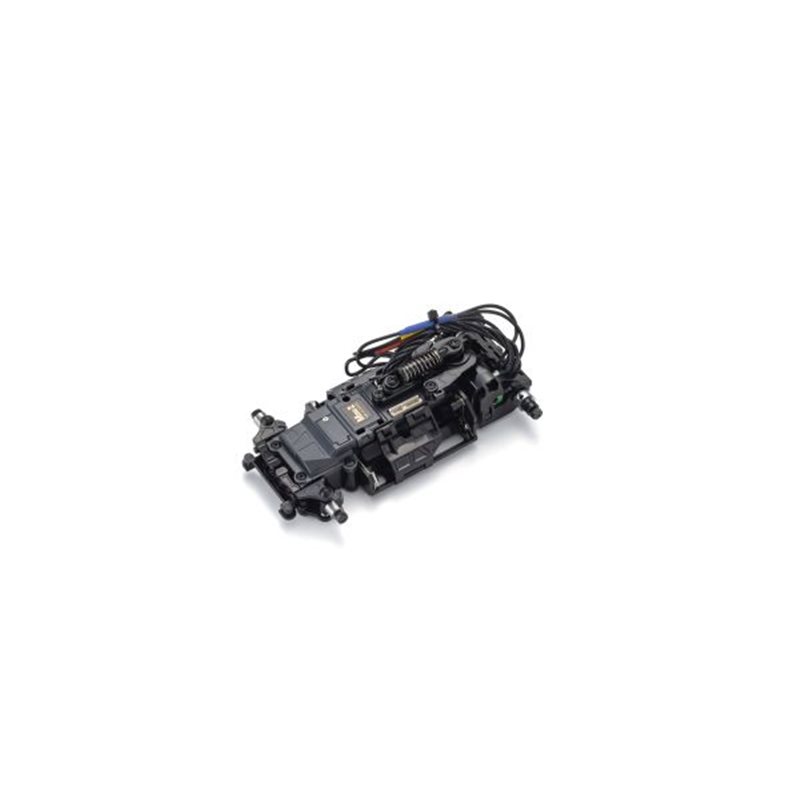

The Kyosho Mini-Z MR04 EVO2 Chassis Set (N-MM2) 4100KV is a high-performance, factory-assembled chassis designed for RC enthusiasts seeking advanced customization and control.

Key Features:

• MR-04 EVO2-N-MM2 Chassis:

  • Equipped with a KYOSHO SPEED HOUSE KV4100 brushless motor, delivering exceptional speed and responsiveness.
  • Features a factory-assembled chassis with a lower center of gravity compared to the MR-03, enhancing stability through corners.
  • Includes a ball differential as standard, optimizing rotational differences between left and right rear wheels during turns and providing moderate slip action to improve traction under load.

• Adjustable Front Suspension:

  • Offers both narrow and wide tread settings by changing the lower and upper plates on the front, as well as the steering tie rod.
  • Utilizes a new kingpin-integrated knuckle design to improve camber stability and deliver more linear maneuverability.

• Enhanced Bearings and Gears:

  • All seven ball bearings have a 3mm internal diameter, reducing rotational resistance and minimizing friction loss.
  • Comes with 6T, 7T, 8T, and 9T pinion gears, allowing for gear ratio adjustments to suit different driving conditions.

• Receiver Compatibility:

  • Supports high-speed communication with various high-end transmitters and receivers, achieving transmission speeds of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba units (EVO2 mode).

Specifications:

• Length: 120.6mm
• Width: 67–76mm
• Height: 35mm
• Motor Mount: MM2
• Wheelbase: 94.0mm (L)
• Front/Rear Tread: 58.5–65.0mm / 61.5–65.0mm
• Gear Ratio Options: 7.3, 6.3, 5.5, 4.9:1
• Weight: 138.0g (excluding body, tires, and wheels)
• Motor: KYOSHO SPEED HOUSE XSPEED 41 (KV4100)

Included in the Package:

• Factory-assembled MR-04 EVO2-N-MM2 chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
• Parts set for changing front tread
• 6T, 7T, 8T, and 9T pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts

Required for Operation:

• Transmitter
• Receiver unit (compatible with EVO/EVO2)
• Auto Scale Collection (ASC) body
• AAA batteries x 4 for the chassis
• Batteries for the transmitter

This chassis set is ideal for RC enthusiasts looking to upgrade to a high-performance platform with advanced customization options, providing a responsive and adaptable driving experience.
