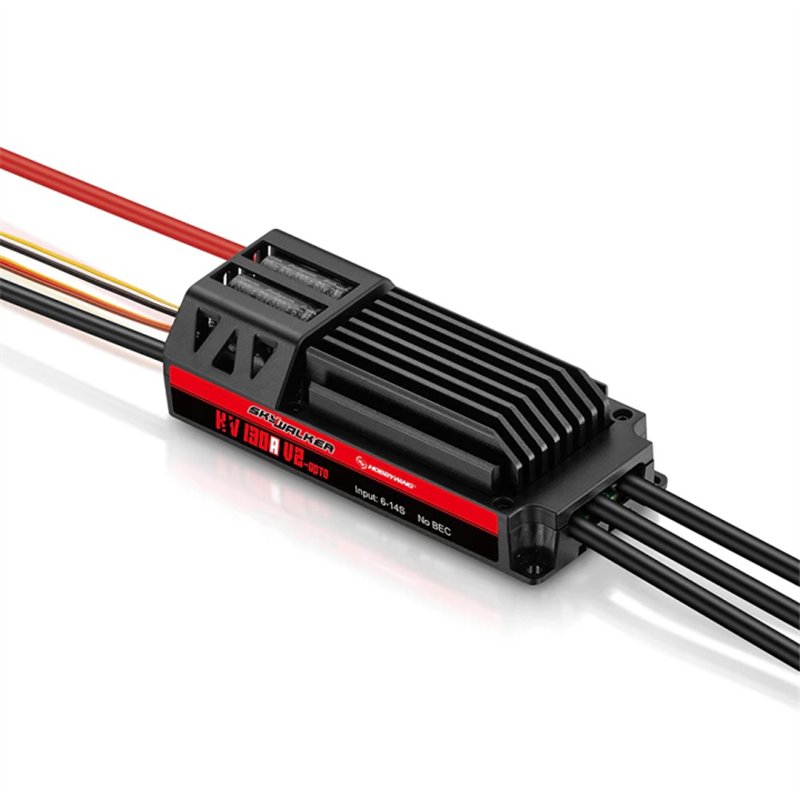

Skywalker 130A HV Opto V2 ESC 6-14S w/o BEC

Hobbywing 30222300 - Skywalker 130A HV Opto V2 ESC 6-14S w/o BEC

Features

• High-performance 32-bit ARM M4 microprocessor running at up to 120 MHz for fast and precise throttle response
• DEO (Driving Efficiency Optimization) technology for smoother throttle transitions, higher efficiency, and lower ESC temperature
• Supports multiple brake modes: Normal Brake, Reverse Brake, Linear Reverse Brake, and Brake-Off
• “Search Mode” helps locate downed aircraft with motor pulse signal
• Multiple protections: low-voltage cutoff, over-temperature protection, throttle signal loss, and abnormal input voltage protection
• Easy programming via transmitter or LED Program Box
• Optimized for large fixed-wing aircraft and gliders

Technical Specifications

• Continuous current: 130 A
• Peak current: 160 A
• Input voltage: 6–14 S LiPo
• BEC: OPTO (no built-in BEC)
• Processor: 32-bit ARM M4, 120 MHz
• Functions: DEO active freewheeling, multi-mode brake, search function, multiple protection modes
• Dimensions: 104 × 48 × 29 mm
• Weight: 253.2 g
• Application: large 3D fixed-wing aircraft, high-performance gliders, or large-scale electric models
