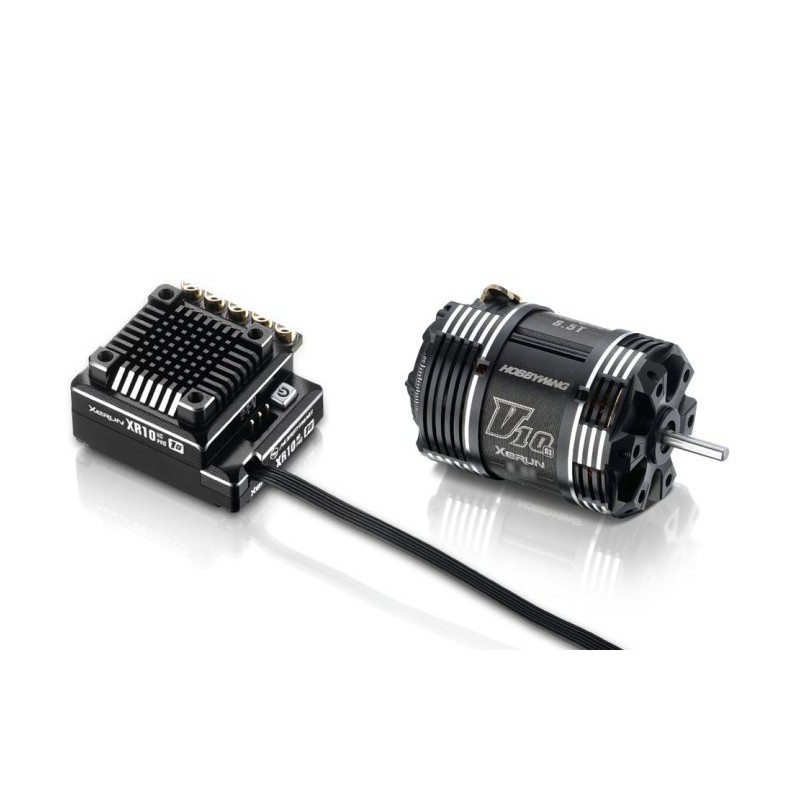

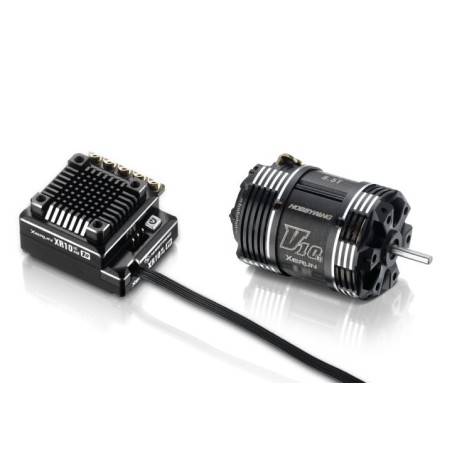

Xerun Combo XR10 Pro 1S HD & V10 G3 3.5T

Hobbywing 38020278 - Xerun Combo XR10 Pro 1S HD & V10 G3 3.5T

XeRun XR10 Pro 1S Heavy Duty Racing ESC

Specifications:

• Type: 1/12 scale on-road
• Brushless / Sensored
• Waterproof: No
• Continuous /Peak Current: 120A/830A
• Input Voltage: 1S Lipo/3-4 Cell NiMH
• BEC Output: Switch Mode: 6V/3A
• Input Wires: 12AWG/200mm
• Output Wires: 12AWG/200mm & 14AWG/200mm
• Input Connectors: No
• Output Connectors: No
• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Separate Program Port
• Firmware Upgrade: Supported
• Size: 37.5 x 31 x 31 mm
• Weight: 46.7 g
• Motors: Sensored Brushless Motors
• Vehicles: 1/12 scale Pan Cars
• KV Rating/T Count: 1S LiPo: ≥3.0T (* ESC in Zero-timing/Blinky Mode)

XeRun V10 G3-3.5T Motor

Specifications:

• Type: Brushless, sensored (2-pole)

• Turns / KV: 3.5T / 9450 kV

• Internal resistance: 0.0018 Ω

• No-load current: 7.7 A

• Max output power: 462 W

• Current @ max power: 126 A

• Timing range (mechanical): 20°–50°

• Dimensions (Ø × L): 35.9 × 51.2 mm

• Shaft (Ø × L): 3.17 × 13.3 mm

• Weight: 163 g

• Recommended LiPo: 1S (typical 1/12 Modified
