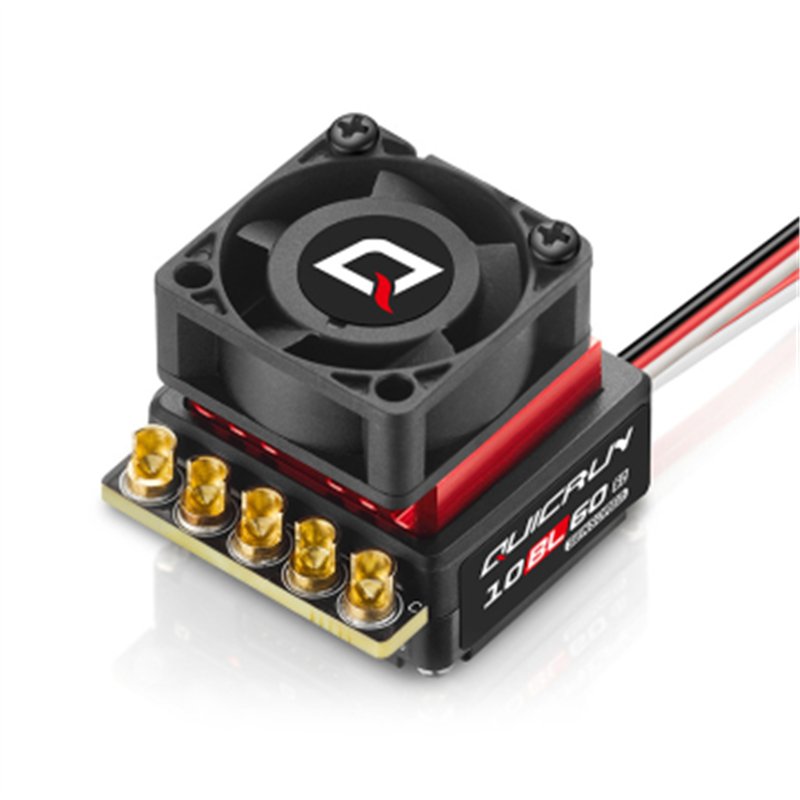

ESC QuicRun 10BL60 G2 Sensored Car 1/10

Hobbywing - QuicRun 10BL60 SENSORED G2 ESC

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output.

• The continuous output current has increased from 2A to 4A
• A peak current of up to 7A
• Switchable output voltages of 6V/7.4V

It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo - Timing Technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability

• Low voltage protection
• Over-temperature protection
• Throttle signal loss protection
• Overload protection
• Continuous current: 60A
• Peak Current: 200A

A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.

Support multiple programming methods
The ESC supports three programming options:

• Multi-function LCD programming box
• LED programming box
• SET button

This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Supports Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

• Counterclockwise (CCW)
• Clockwise (CW)

Specs:

• Type: 1/10, Brushless, Sensored ESC
• Waterproof: NO
• Cont./Peak Current: 60A/200A
• Input Voltage: 2S Lipo
• BEC Output: Switch Mode 6V/7.4V @ 4A
• Input Wires: 14AWG-175mm
• Output Wires: 14AWG-175mm
• Input Connectors: No
• Output Connectors: No
• Size: 35x31x30.8mm
• Weight: 66.5g (Included wires & connectors)
• Data Recording: Not Supported
• Firmware Upgrade: Not Supported

ESC Programing via:

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported
• OTA Programmer: Not Supported
• Program Port: Shared with fan port

Applications
Motors: Sensored/Sensorless Brushless motor
Vehicles: 1/10 Touring, Buggy, Drift & 1/12 and 1/14 Vehicles
KV/Rating: QUICRUN 3650 SD G2
