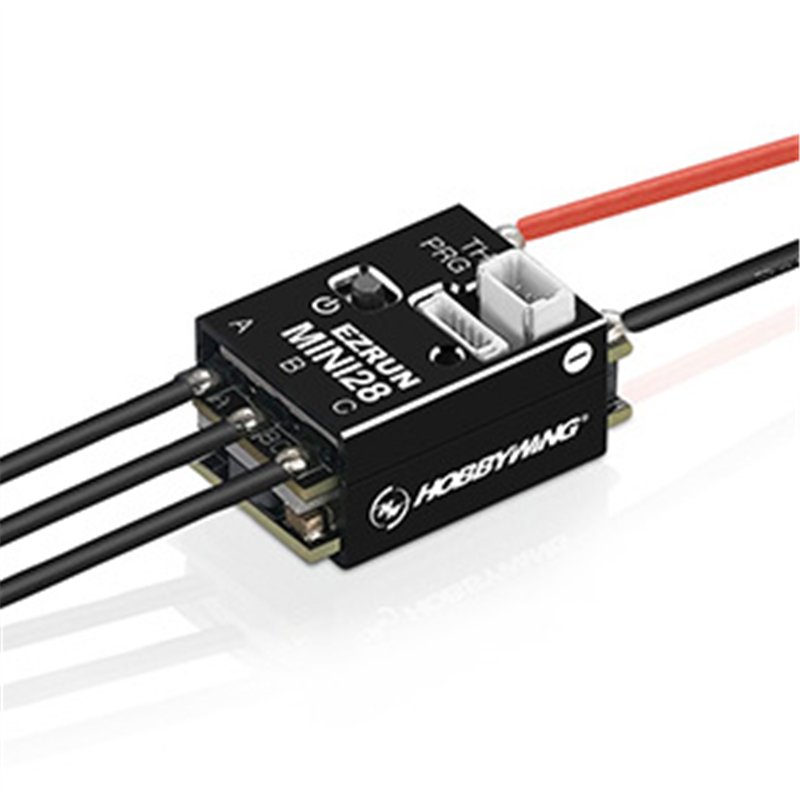

EzRun MINI28 30A 2S ESC 1/28

Hobbywing HW30101300 - EzRun MINI28 ESC

Built specifically for 1/28 scale racing model
The powerful software and hardware are built into the Mini28 ESC. It features new programmable parameters and is optimized for 1/28 competitions.

Petite and lightweight
The ESC is extremely small (22x14mm) and lightweight (5g). The shape is designed for ease of welding and reducing unnecessary tweak. Essentially, this is an an important factor for a 28th-scale-size racing car.

Features:

• Small size & light weight
• High power, strong power
• Abundance of parameter items
• Two profiles
• Built-in adjustable BEC
• OTA support
• The special program for 1/28 Mini racing, rich and exquisite adjustable parameters to meet the needs of different tracks and controls.
• The throttle driving frequency, brake frequency and initial throttle force are adjustable to realize the driver's accurate adjustment of the motor driving and braking.
• Multiple protection functions: low battery voltage protection, ESC overheat protection, fail-safe protection (throttle signal loss protection).
• Support LCD G2 program box and OTA programmer to set parameters of esc.
• Support the upgrade of esc firmware (LCD G2 program box or OTA programmer shall be purchased separately) and enjoy the latest functions.

High power, low temperature
The fully-alloy heat sink ensures that the ESC can dissipate heat and operates at a healthy temperature range while the maximum output current can be up to 30A.

Built-in dual app mode
The ESC is equipped with two modes of application usage; The Zero-Timing mode which is more commonly known as "blinky" and the “modified” mode which allows power-hungry users to increase additional turbo timing in the software.

Built-in BEC supporting high-voltage servo
The ESC has a built-in BEC which can support a maximum output current of up to 3.5A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Seamless connectivity with OTA module and mobile phone
Simple and convenient, parameter settings, firmware upgrading and other operations can be established using Hobbywing’s OTA Bluetooth module and your mobile phone via the HOBBYWING app.

ESC Specs:

• Type: 1/28, Brushless, Sensored ESC
• Waterproof: NO
• Cont./Peak Current: 30A/80A
• Input Voltage: 2S Lipo
• BEC Output: 6V/7.4V @ Max 3.5A
• Input Wires: 20AWG-55mm
• Output Wires: 22AWG-80mm
• Size: 22.7x14.2x11.8mm
• Weight: 5g (without wires)
• Firmware Upgrade: Supported

ESC Programing via:

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD G2 Program Box: Supported
• OTA Programmer: Supported
• Program Port: Throttle wire

Data Recording:

• Extreme value: Supported
• Real-time Data: Not Supported
• Historical data (Graph): Not Supported

Application:

• Motors: EzRun 1626SD
• Vehicles: 1/28 & 1/27
