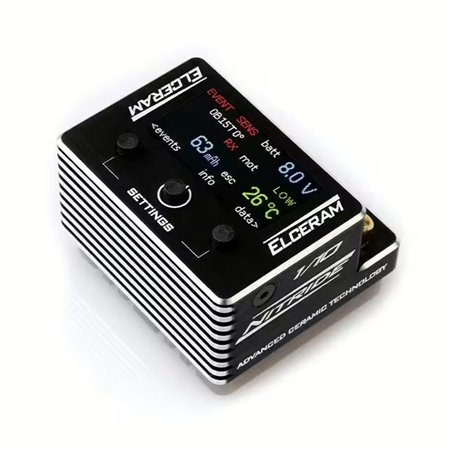

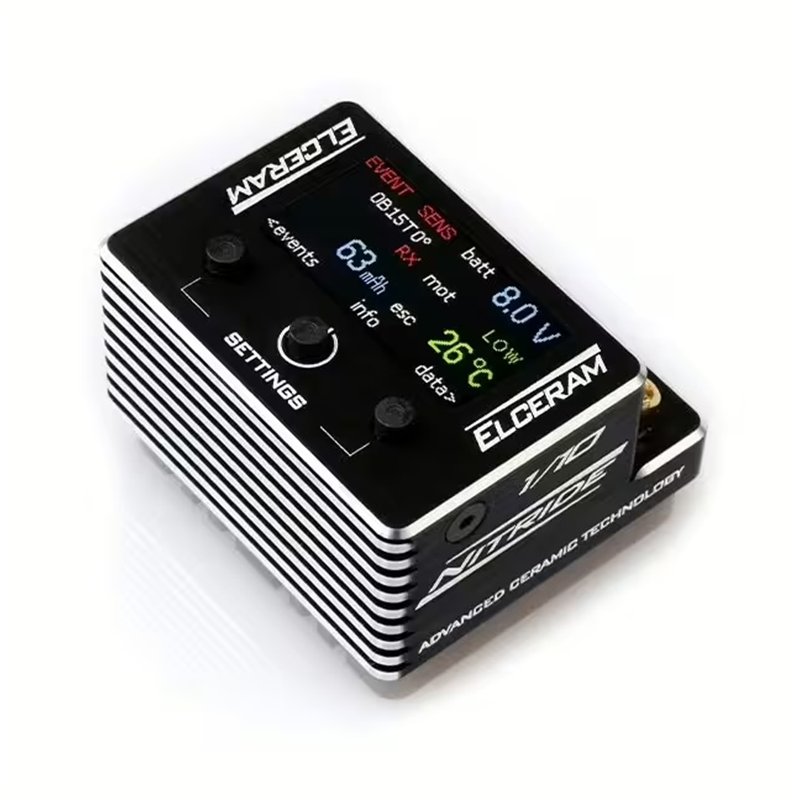

Elceram Nitride 1/10 G2 Competition Brushless ESC

kr2,909.00
Tax included
Elceram Nitride 1/10 G2 Competition Brushless ESC
Quantity

ELC020

New Generation Innovative ESC for 1/10 RC cars.

TOP racing solution for powerful motors from 4.5 T up.

NITRIDE 1/10 G2 is a new generation electronic speed controller for sensored Brushless DC motors.

Using Advanced Cooling Technology based on Aluminium Nitride Ceramic cooler, NITRIDE 1/10 G2 has excellent thermal conductivity and can be used with powerful motors from 4.5 T up.

NITRIDE 1/10 G2 provides TFT LCD color display allowing very quick and easy adjustment of all parameters,  post-race data evaluation and self-diagnostics without need of any other interface.

Building on the proven features of the first generation, NITRIDE 1/10 G2 introduces new, innovative features that take RC motor control to a whole new level.



New Innovative Features:
  • All way size reduction
  • Reverse polarity protection
  • Revolutionary battery current and discharge monitoring
  • Post-race data saved after turn off
  • Soldering tabs for easy wires replacement
  • Connector for intelligent FAN (if needed)
  • Revolutionary motor analyzer function inside of ESC




  • Revolutionary motor derating function - adjust your strong motor for smaller track quickly and easily!
  • Revolutionary brake softening function for high speed and low grip braking - do not loose the traction in the end of the straight!
  • Improved button feeling
  • FW update function
  • New Aluminium mounting plate with FAN holder

LCD Display

As you got used to by ELCERAM speedos, NITRIDE 1/10 G2 is endowed with necessary LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.

The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisely.

Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It is really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.

NITRIDE 1/10 G2 saves your data from your last race after turning ESC off and enables you to watch it after the next turn on. Take your time and analyze the data at your leisure, whenever you want!



Dimensions

Although it brings so many great innovative functions, NITRIDE 1/10 G2 is really compact sized and even smaller than Generation 1.

Its dimensions are suitable for all types of 1/10 RC cars.

In addition to that, 70% of weight is located at the bottom of ESC for even better stability of your car!

Advanced Cooling Technology based on ceramic and Thick Film Technology

Advanced cooling technology based on Aluminium Nitride cooler, developed especially for NITRIDE, provides the ESC the excellent thermal conductivity and long-term resistance to high temperatures and loads.

Power MOSFET´s transistors are attached on very thick silver layer with low resistance and high current capability. The silver layer is fired directly on Aluminium Nitride cooler using temperature above 850 °C for excellent long-term reliability and thermal shock stability.  The power stage - the heaviest component - is all way down.

During production, we use very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies inspired by advanced power systems designed and manufactured here in ELCERAM.

Quick and easy installation

Installation of NITRIDE 1/10 G2 is quick and easy - you can stick it to the chassis of your car using Aluminium mounting plate included in the package and double-sided tape. Recommended tape type is 3M GPH-110.

You can also screw NITRIDE directly onto a suitable place on your chassis, ideally with good thermal conductivity.

For highly demanding conditions where better cooling effect is desired, especially for motors 4.5 T and 5.0 T, we recommend to use passive heatsink or external FAN. The new Aluminium mounting plate included in the package and also available as option part ELC022 is already equipped with FAN holder for quick and easy FAN installation, for example ELCERAM FAN 2510, available as option part ELC025.

The Aluminium cover and display with buttons are replaceable easily in case of any accident.  Both are available as a spare part - ELC023 and ELC024.

Features:
  • ESC for sensored BLDC motors from 4.5 T up.
  • Developed especially for 1/10 RC cars.
  • Reverse polarity protection.
  • Intelligent algorithms for ESC protection.
  • Fine throttle and brake adjustment for excellent feeling.
  • TFT LCD color display with resolution 160 x 80 pixels, matte finish.
  • Size: 36,5 (L) x 34 (W) x 24 (H) mm.
  • Weight: 59 g without wires.
  • Power supply: 2S LiPo.
  • ESC current cont. / pulsed: 180 A / 1500 A.
  • BEC: 6 - 7,4 V adjustable, current cont. / pulsed: 6 A / 12 A.
  • Extreme low internal resistance based on silver conductive layer.
  • Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
  • Connector for intelligent FAN.
  • Zero Timing (Blinky Mode) supported.
  • EFRA, ROAR and BRCA approved.
Functions:
  • Revolutionary easy Rx calibration.
  • Realtime monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and more.
  • Revolutionary battery current and discharge monitoring.
  • Revolutionary motor derating function.
  • Revolutionary brake softening function.
  • Revolutionary motor analyzer function.
  • Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and more.
  • Post-race data evaluation. Post-race data saved after ESC turn off.
  • Easy programming: throttle, brake, boost and turbo timing, hall angle, BEC and many other functions.
  • Continuous BEC voltage monitoring.
  • Continuous motor speed monitoring.
  • RPM limiter supported.
  • Race data logging, temperature and other curves, histograms and more.
  • Adjustable maintenance reminder for easy check.
  • No programming interface needed.
