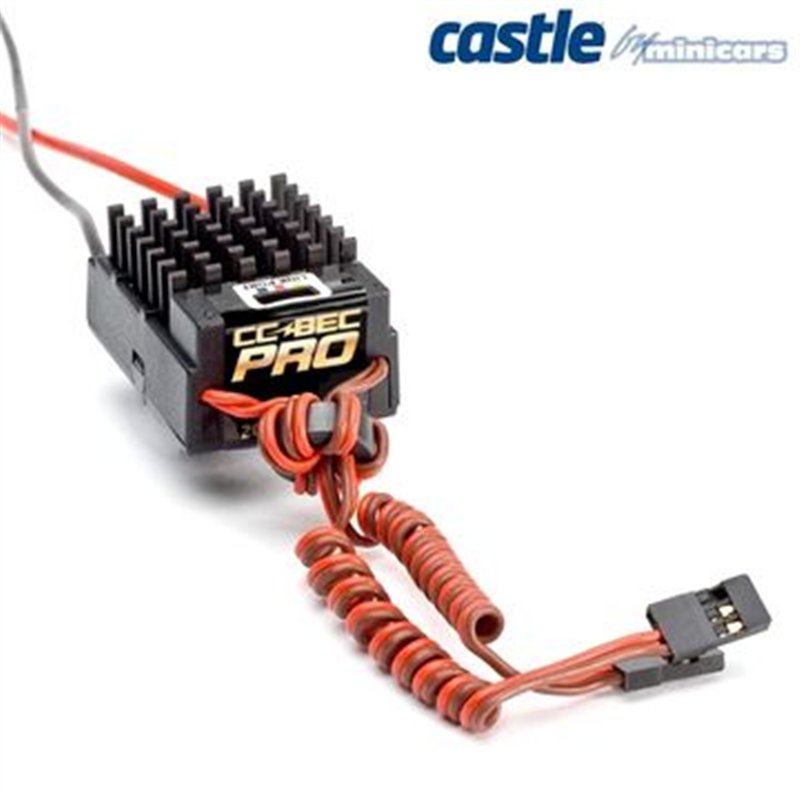

CC BEC PRO 20A MAX OUTPUT, 12S/50.4V MAX INPUT SWITCH

Our BEC's are small devices that eliminate the need for a receiver battery pack. They draw higher voltage from the motor batteries and drop it to a volt that is suitable for your receiver and servos. This is required in applications that draw high power for multiple servos or more than 3S LiPo's.


NOTE: CC BEC PRO should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

Specs:

• Max load: 20A peak
  Max continuous current**
  16 volts input = 15 amps
  24 volts input = 13 amps
  32 volts input = 11 amps
  40 volts input = 9 amps
  48 volts input = 8 amps


• Volts: Cars: 6S LiPo / Airplanes: 10S LiPo / Helicopters (with disabled brake): 12S
• Adjustable output: 4.8-12.5V
• Size: 43 x 33 x 24 mm
• Weight: 29 g

*Weight without wires
**Ratings are determined with a 5mph airflow on the BEC.
